Monochrome STN YG 20x4 Character LCD Display Module 2004 LCD Module
Quick Detail of 20x4 Character LCD Module
RYP2004B is a monochrome 20x4 character LCD display module. Module size is 98.0 x 60.0 mm. The series has built in IC ST7066, supporting default interface 6800; other available options for interface are SPI and I2C. Default voltage is 5V; when using 3V, the supply for negative voltage has to be 3V also. LED can be driven by PIN1, PIN2, PIN15, PIN16 or A & K. RYP2004B offers multiple combinations of LED backlight, LCD types, different kinds of polarizer and fonts for you to choose from. Feel free to contact us for more details.
Specification of Monochrome 20x4 LCD display
| Item | Description |
| Product Name | 20X4 Character LCD Module, 2004 Alphanumeric Display Module |
| Model No. | RYP2004B |
| Dot Format | 20X4 |
| Outline (mm) | 98*60 |
| Viewing Area(mm) | 76*25.2 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7066U |
| Power supply | 5.0V |
| Interface | Parallel |
| Operating Temp | -30º C~70ºC |
| Storage Temp | -30º C~80ºC |
Contour Drawing of 2004 Alphanumeric Display Module
Features Of 20x4 Character LCD Display
1. Product Name: 20×4 LCD Module
2. Application: POS Terminal, Flow Meter, Test Instrument, Measuring Meter, Consumer Electronics
3. Display Type: STN Blue, FSTN Postive, STN Blue Negative
4. Structure: COB
5. Polarizer Type: Transflective/Reflective/Transmissive
6. Operating Temperature: -20-70℃
7. Connector Method: PIN
8. Voltage: 5v
9. Storage Temperature: -30-80℃
10. Backlight: LED backlight
11. 4 lines of 20 characters
Character LCD Modules(LCM) Of Royal Display
Royal Display offers a wide range of standard Character LCD modules for customers' application. Our LCD character displays are available from 8x2, 12x2, 16x1, 16x2, 16x4, 20x2, 20x4, 24x2 through to 40x4 formats with 5x8 dot matrix characters. The LCD panel technologies include TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.
To meet the demands of customer applications, these character LCD displays are available with viewing angles of 6:00, 12:00, 3:00, and 9:00 o'clock. Royal Display offers various IC options of character fonts including English/Japanese, western European, eastern European, Scandinavian European, Cyrillic (Russian), and Hebrew/Arabic. These LCD character module and LCM Modules can be used on industrial and consumer's applications including entrance guard's equipment, telegram, medical device, car and home audio, white goods, game machine, toys and etc.
Product Tags:
|
|

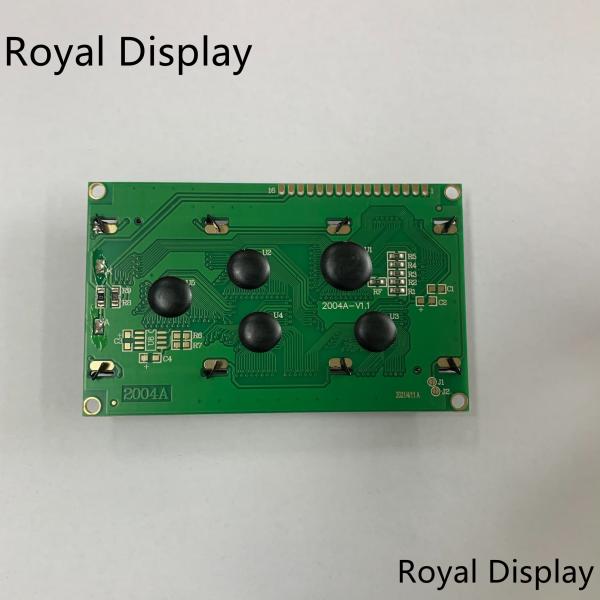

STN YG 20x4 Character LCD Display Module Monochrome 2004 LCD Images
|
