Brand Name : ROYAL DISPLAY
Model Number : RYP0802B-Y
Certification : ROHS, ISO
Place of Origin : China
MOQ : 500pcs
Price : Negotiable
Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 300K/M
Delivery Time : 15-20 work days
Packaging Details : Cartons, Capboard, EPE, Blister Tray
DOT Format : 8X2
Outline (mm) : 58*32
LCD Type : FSTN-Positive, Stn-Gray
Backlight Color : White or Amber LED Backlight
Power Supply : 5V
Viewing Direction : 6:00
IC Package : COB
Operating Temp. : -20º C~70ºC
Storage Temp. : -30º C~80ºC
Product Description
Item | Description |
Product Name | 8x2 Character LCD Module |
Model No. | RYP0802A |
Dot Format | 8X2 |
Outline (mm) | 58*32 |
Viewing Area(mm) | 28*16 |
Viewing Angle | 6 O' clock |
LCD Type | FSTN-Positive, STN-Gray |
Backlight | White or Amber LED backlight |
Driver IC | AIP31066 |
Power supply | 3.3V |
Interface | Parallel |
Operating Temp | -30º C~70ºC |
Storage Temp | -30º C~80ºC |
Organization
Character LCM
1>> Customer requirements can be customized.
2>> Available for different modes such as yellow-green, blue and white color.
3>> Support characters: 8x2,16x1,16x2,16x4,20x4, ect..
4>> Customized for the total module including new size, backlight, color,
PCB circuit board. connection mode ect.
Application: DAB Radios,Stereos, Access Control, The Printer
Features Of Different Industrial Segment
Our Advantages
1, It can help customers solve hardware and software solutions, so that customers stand at the commanding height of the market for the first time.
2,All technical indexes are equal to or higher than those of other companies
3,Based on strong R & D force and advanced equipment, the product has high stability and reliability
4,Personalized service, according to customer requirements.
5,Service oriented, quality first.
![]() |

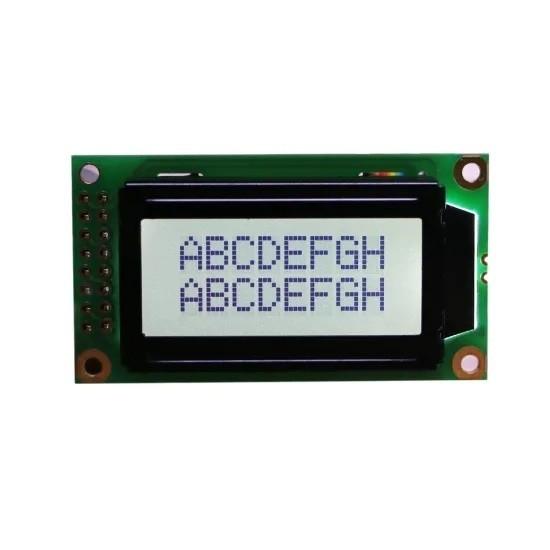

0802 COB Blue REACH RoHS ISO Display Transflective Stn Monochrome LCD Module Images |
