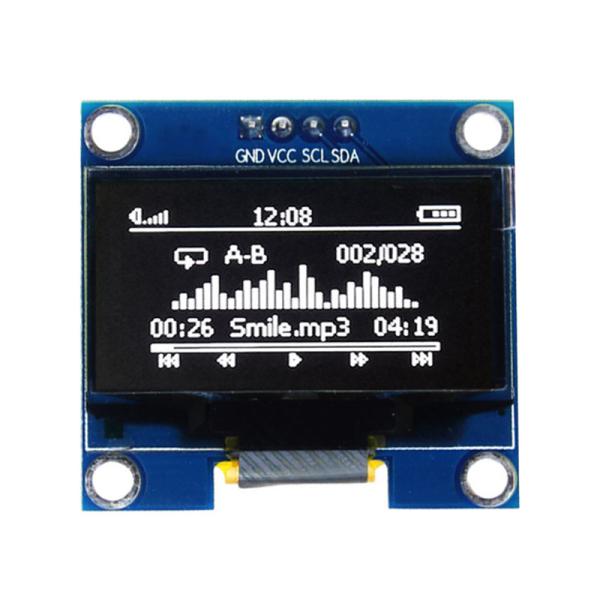

1.3 Inch IIC Interface 128x64 Graphic OLED Display SSD1306

Name: 13 Inch IIC Interface 128x64 Graphic OLED Display SSD1306
Brand: ROYAL DISPLAY
Price: 1 USD

China 1.3 Inch IIC Interface 128x64 Graphic OLED Display SSD1306 factory

Brand Name : ROYAL DISPLAY

Model Number : RYO12864-108-KSWG7P013

Certification : SGS ROHS

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 300k/Month

Delivery Time : 10-15 Working Days

Packaging Details : Cartons, Capboard, EPE, Blister Tray.

Model No. : RYO12864-108-KSWG7P013

Resolution : 128x64 dots

Display Color : White & Blue

Controller IC : SSD1306

Outline Dimensions : 34.5(W)x23.0(H) mm

Interface : I2c Port, Spi, Parallel

Dot Patch : 0.23 (W) x 0.23 (H) mm

Pixel Size : 0.21 (W) x 0.21 (H) mm

Active Area : 29.42 (W) x 14.7 (H) mm

Operating Temp. : -20°C~+70°C

Storage Temp. : -30°C~+80°C

Usage : Outdoor, Indoor, Adertising Display, Audio, Automotive control panels, Medical devices

Contact Now

128x64 Graphic OLED Display | 1.3 inch OLED Display

ABOUT OLED DISPLAY

RYO12864-108-KSWG7P013 is the graphic OLED display module,attached with breakout board,made of 128x64 individual Blue OLED pixels,diagonal is only 1.3 inch.The controller ic SH1106, communicates via 4-wire SPI serial or I2C serial interface,3.3V power supply,extremely wide viewing angle and extremely operating temperature. It's 4-wire SPI serial interface with pin header connection by default.

It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.

1.3 Inch IIC interface OLED Screen White Color

Dot Matrix:	128X64
Dots Size:	0.21 (W) x 0.21 (H) mm
Dots Pitch:	0.23 (W) x 0.23 (H) mm
Aperture Rate:	83.3%
IC:	SH1106
Color:	White & Blue
Active Area:	29.42 (W) x 14.7 (H) mm
View Area:	34.5(W)x23.0(H) mm
Module Size:	35.4(W)x33.5(H)x2.7Max(T) mm
Place of Origin:	China(mainland)
Delivery:	Samples: 1-5 working days after payment confirmed
Payment Terms:	T/T, Weatern Union, Paypal
MOQ:	1 Piece

PRODUCT APPLICATION

OUR SERVICE ADVANTAGES

1.Small order would be accepted.

2.Mass production lead time would be guaranteed.

3.Each order will have 0.2%-0.5% spare.

4.Even customers do not have a cooperation with us, we aslo can provide technical services.

5.If mass production has any quality problem, customer can return it.
